Lawler’s 310® thermostatic mixing valve (Type T) meets your specification for a small (1/2″ NPT) under-the-counter master controller for individual or multiple fixtures at point-of-use. The Model 310® contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. For higher capacity needs, the Model 310® is available with a 3/4″ NPT outlet. Model 310® precisely controls outlet temperatures to within ±3o with flow rates of .5 to 7 GPM or .5 to 12 GPM at 45 psi (based on your choice of outlet piping size). The Model 310® can be installed with or without cabinet.
ENG# 86401
SPECIFICATIONS
Series | 310 |
---|---|
Model | 310-50 |
Configuration | Piped Thermometer |
Engineering Number | 86401 |
Application | Point of Use |
Certification/s | ASME A112, ASSE 1016, ASSE 1070, CSA B125, Lead Free |
Connection Type | NPT |
Inlet Connection Size | 1/2" |
Outlet Connection Size | 1/2" |
Min Flow | 1/2 GPM |
Min Flow with Recirculation | N/A |
Rated Flow at 10 PSI | 2-1/2" |
Rated Flow at 45 PSI | 7 GPM |
Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
Finish | Polished Chrome, Rough Brass |

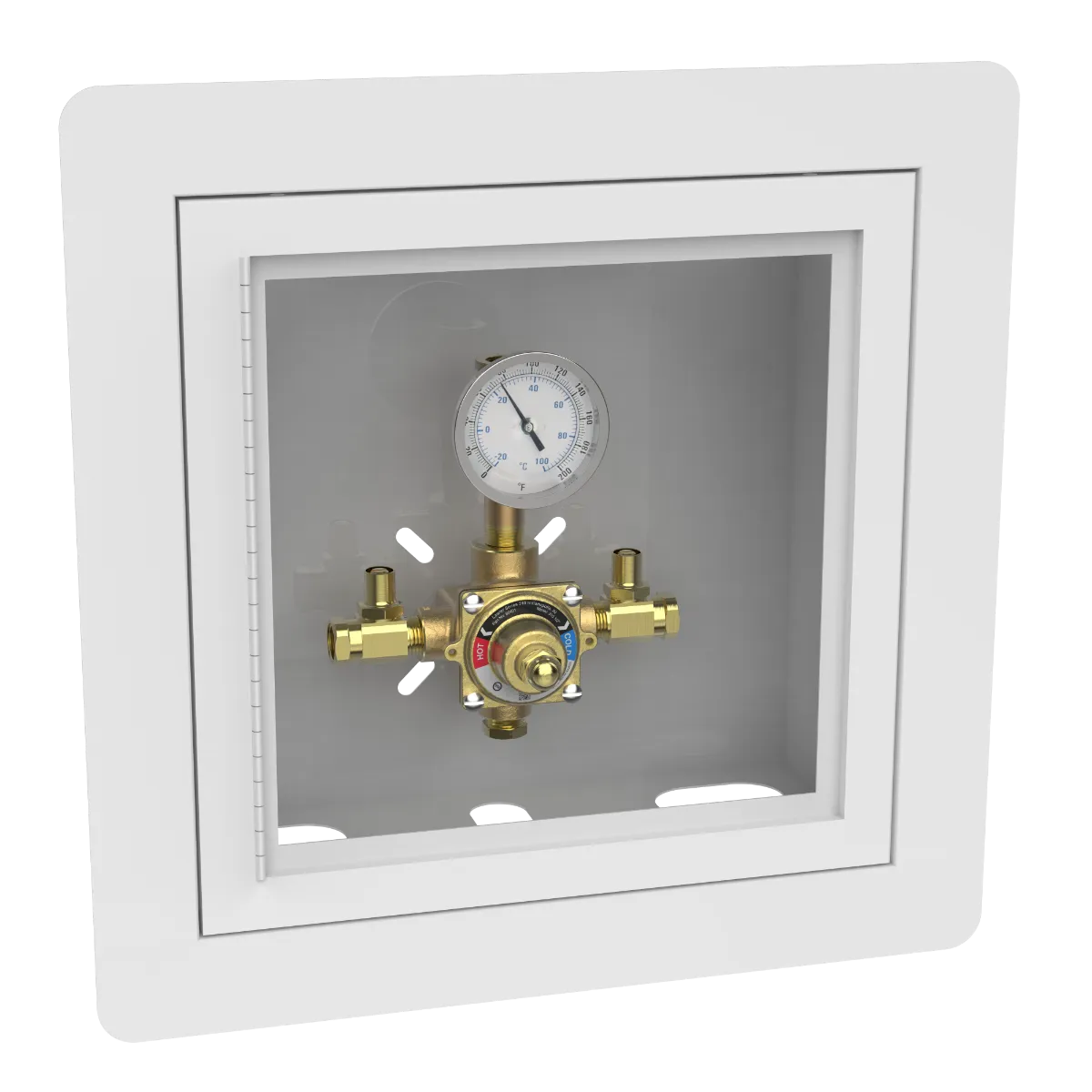

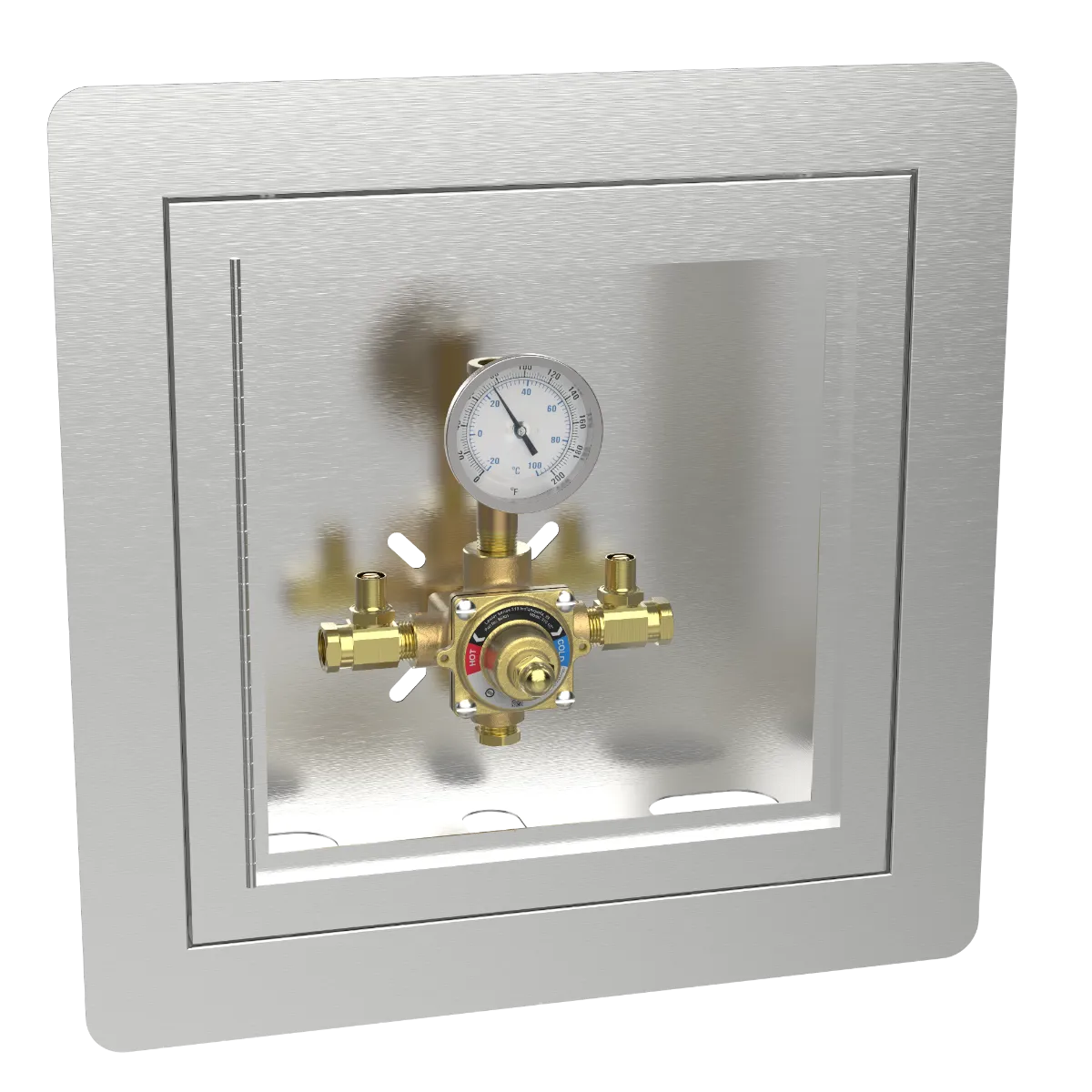

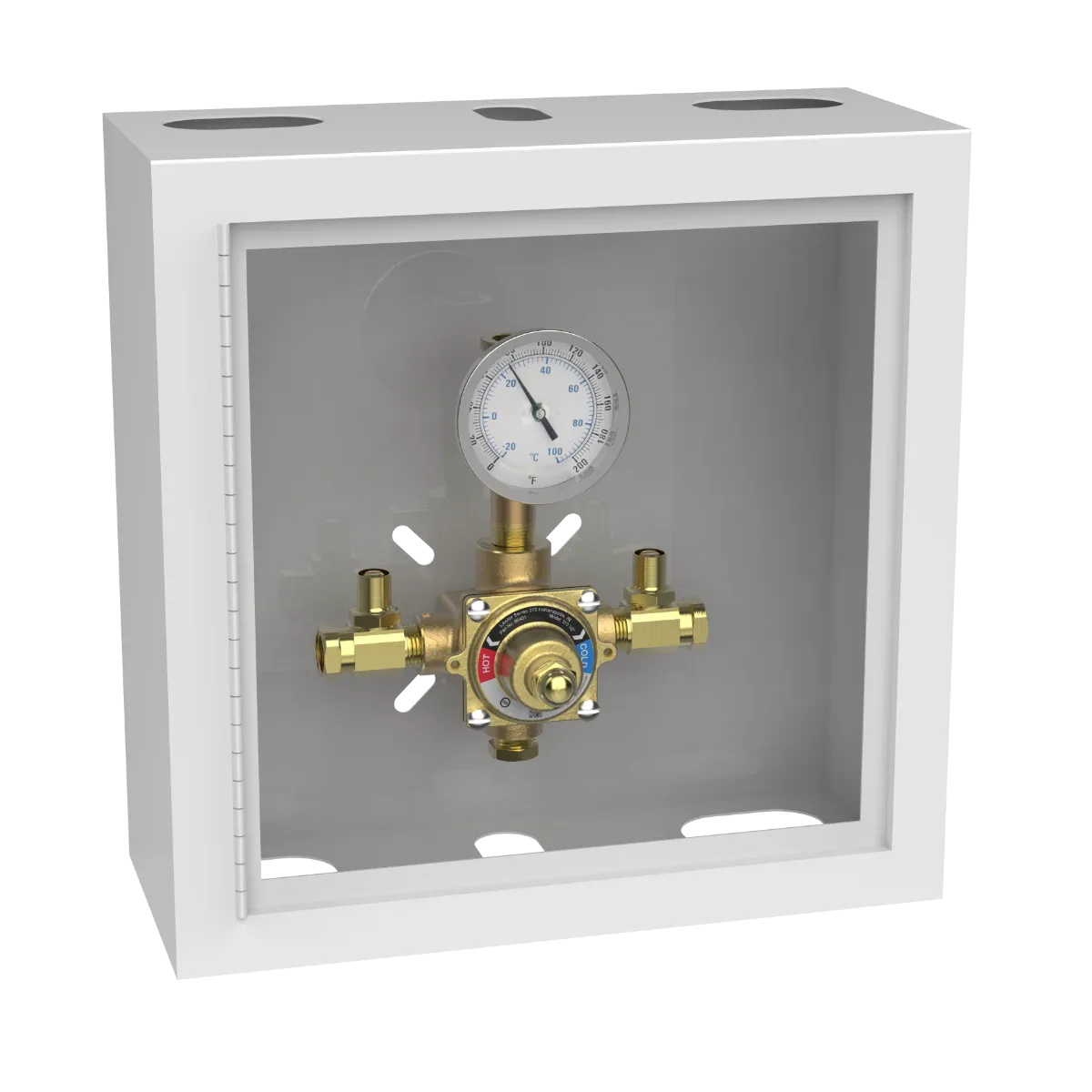

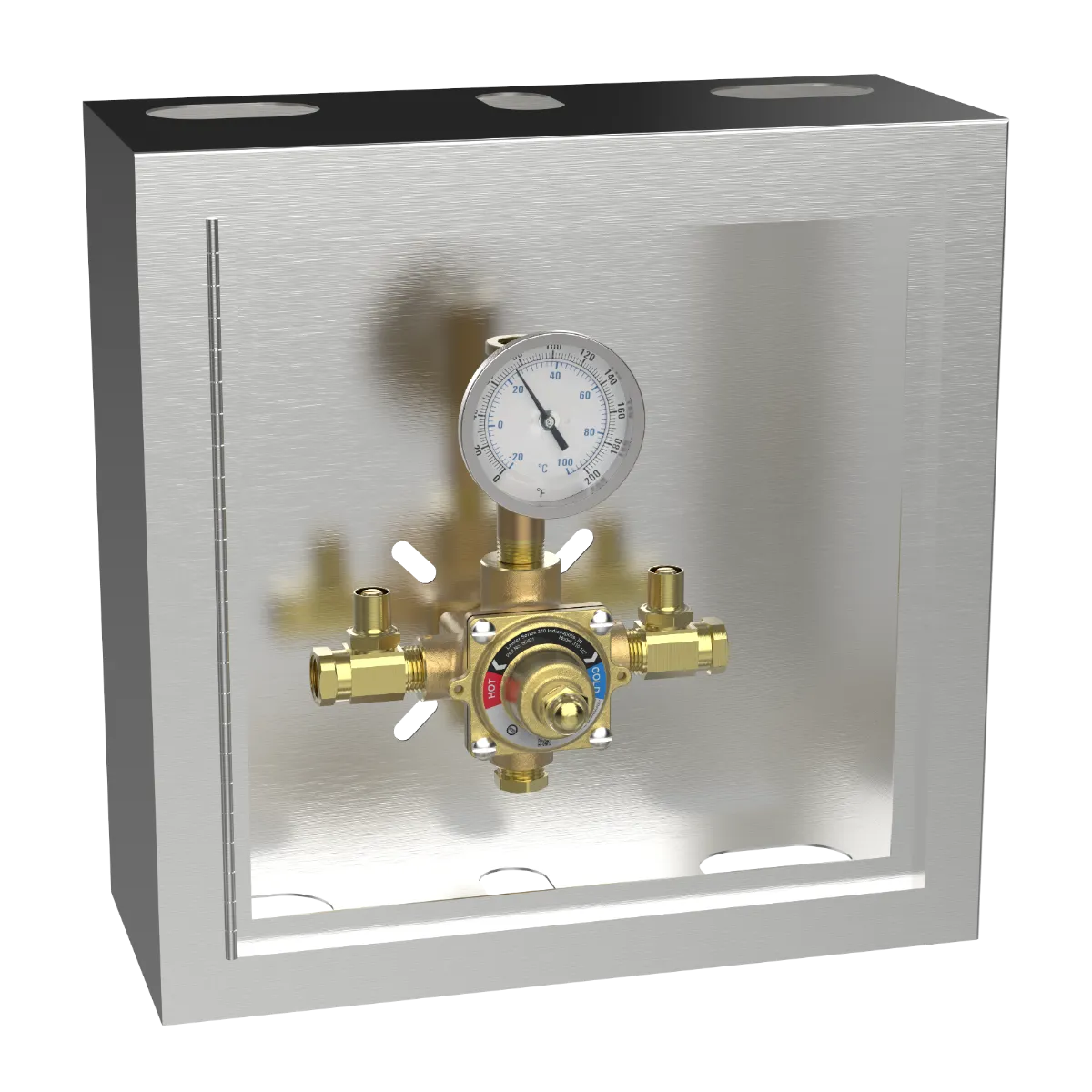

Cabinet Mounting | Exposed, Recessed, Semi-Recessed |
Cabinet Finish | Baked White Enamel, Stainless Steel |
