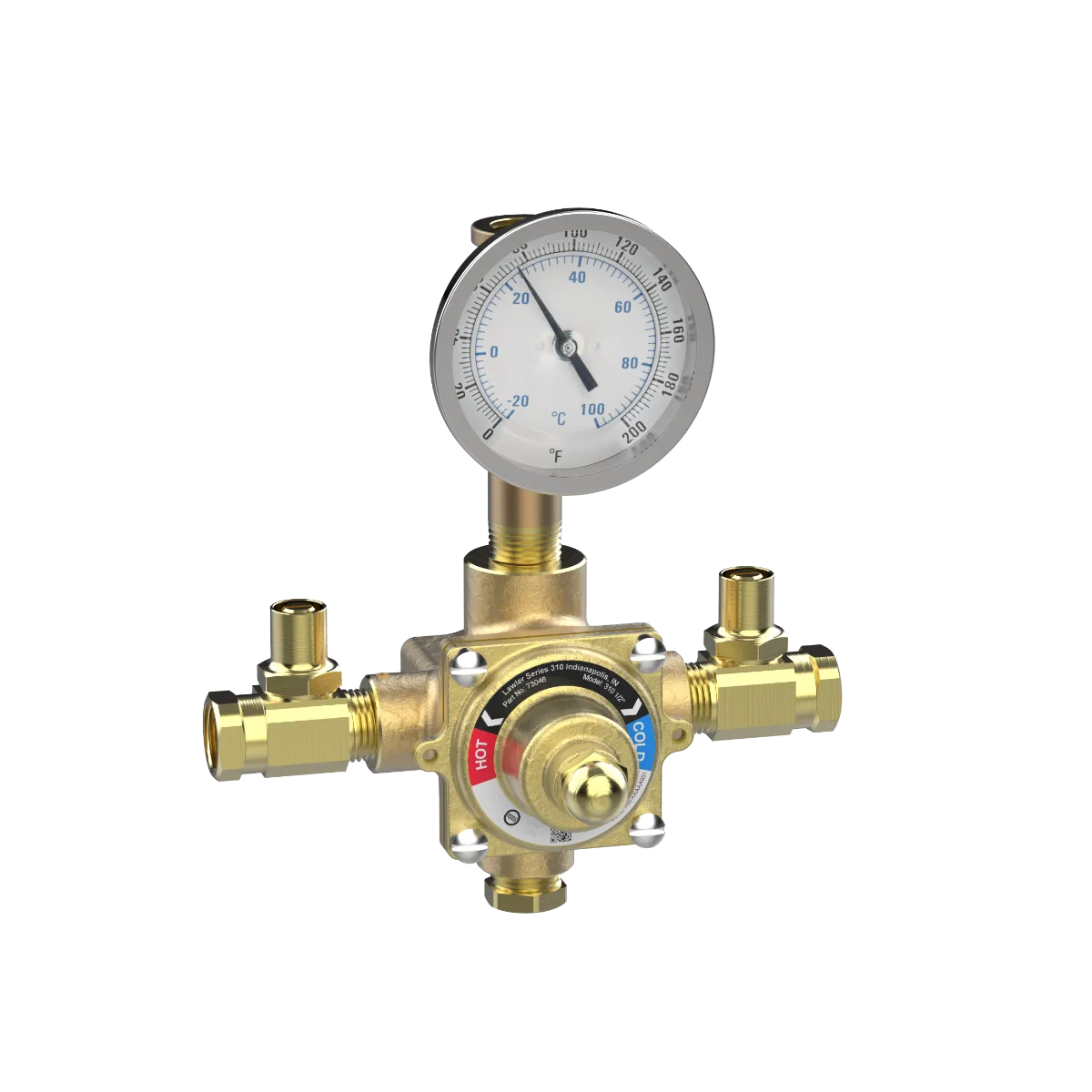

310-50 Piped Thermometer

310-50 Piped Thermometer

Category

Lawler’s 310® thermostatic mixing valve (Type T) meets your specification for a small (1/2″ NPT) under-the-counter master controller for individual or multiple fixtures at point-of-use. The Model 310® contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. For higher capacity needs, the Model 310® is available with a 3/4″ NPT outlet. Model 310® precisely controls outlet temperatures to within ±3o with flow rates of .5 to 7 GPM or .5 to 12 GPM at 45 psi (based on your choice of outlet piping size). The Model 310® can be installed with or without cabinet.

ENG# 73046

SPECIFICATIONS

Series

310

Model

310-50

Configuration

Piped Thermometer

Engineering Number

73046

Application

Point of Use

Certification/s

ASME A112, ASSE 1016, ASSE 1017, CSA B125, Lead Free

Connection Type

NPT

Inlet Connection Size

1/2"

Outlet Connection Size

1/2"

Min Flow

1/2 GPM

Min Flow with Recirculation

N/A

Rated Flow at 10 PSI

2-1/2"

Rated Flow at 45 PSI

7 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Polished Chrome, Rough Brass

DOWNLOADS

CategoryTitleLink
CAD Drawing73046 – 310-50 Piped Thermometer – Drawing – No Dimensions
BIM Revit File73046 – 310-50 Piped Thermometer – BIM
