570-38 Standard

570-38 Standard

Category

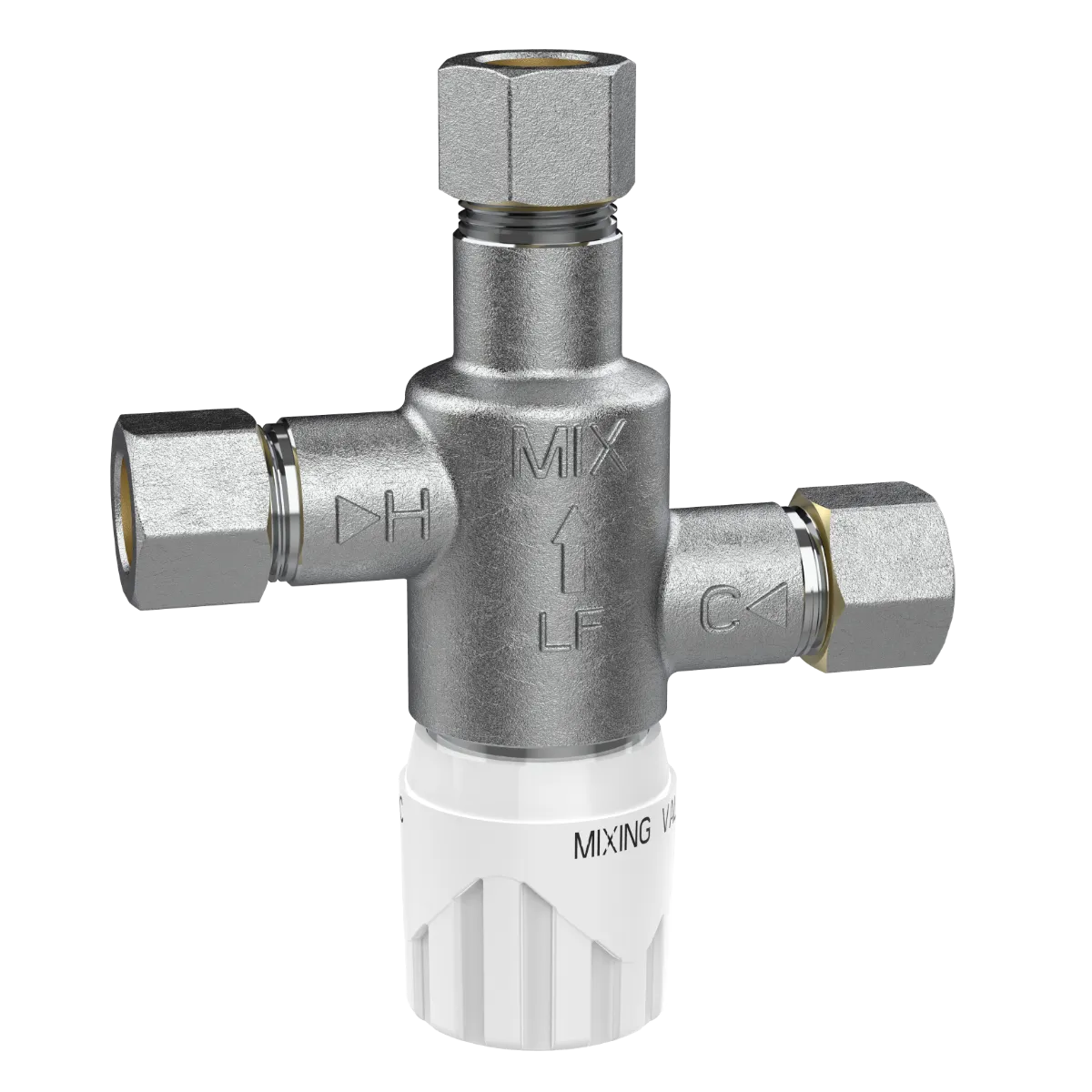

Lawler’s Model 570® technologically advanced under-the-counter valve delivers safe, tempered water at the point-of-use. Model 570® is easy to install, economically priced, and offers a range of temperature settings from full cold to 115°F. Model 570® can be installed with or without cabinets, is resistant to tampering, and protects against scalding and chilling.

ENG# 86820

SPECIFICATIONS

Series

570

Model

570-38

Configuration

Standard

Engineering Number

86820

Application

Point of Use

Certification/s

ASSE 1070, NSF 372, NSF 61

Connection Type

Compression

Inlet Connection Size

3/8"

Outlet Connection Size

3/8"

Min Flow

1 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

1-3/4 GPM

Rated Flow at 45 PSI

3-1/2 GPM

Temperature Range

80°F – 120°F

Finish

Chrome Plated

DOWNLOADS

CategoryTitleLink
Install and Maintenance Manual570-38 Standard – Installation and Maintenance Manual
CAD Drawing86820 – 570-38 Standard – Drawing – No Dimensions
AIA Specifications86820 – 570-38 Standard – TEXT – AIA Specification
BIM Revit File86820 – 570-38 Standard – BIM
