310-75 Standard
310-75 Standard

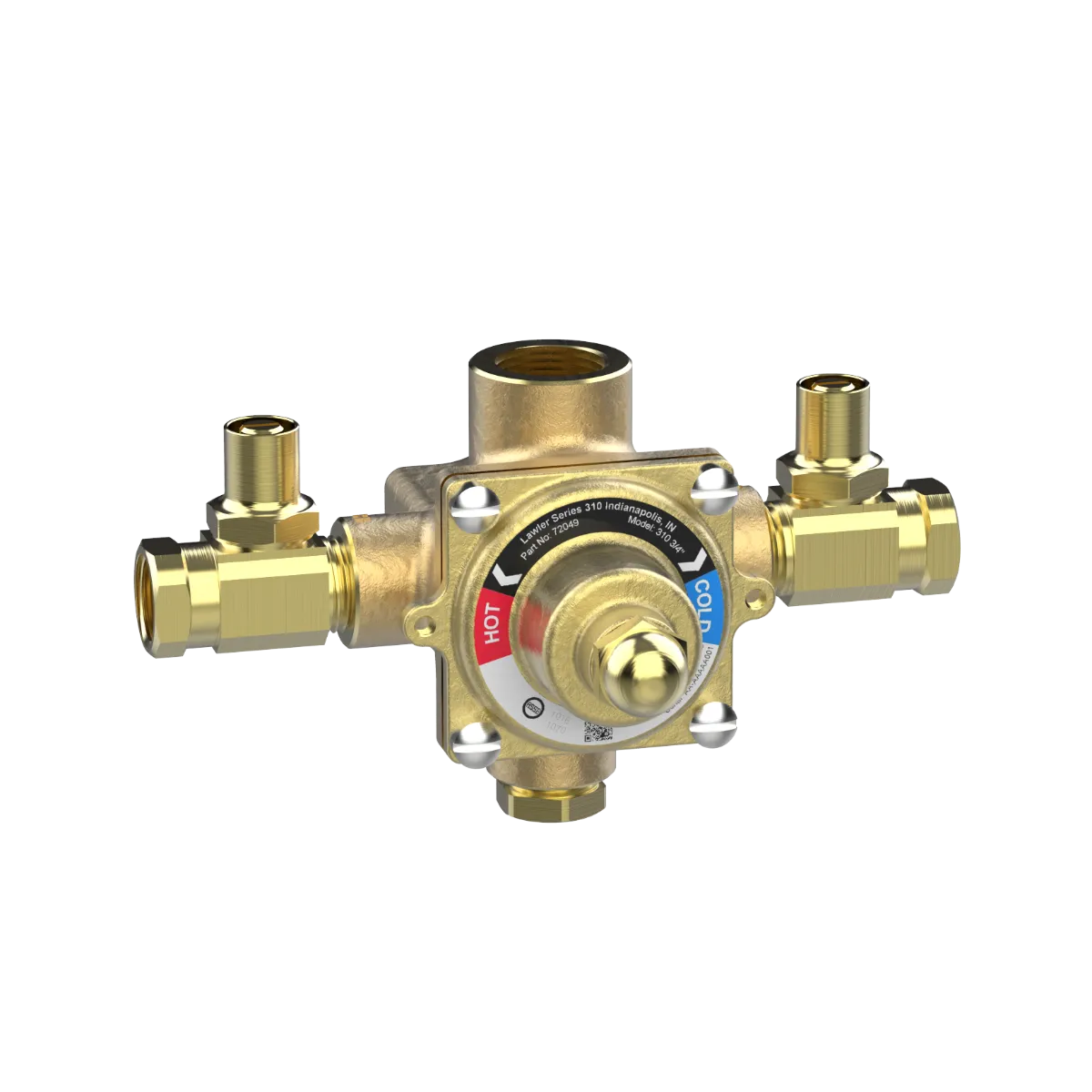

Lawler’s 310® thermostatic mixing valve (Type T) meets your specification for a small (1/2″ NPT) under-the-counter master controller for individual or multiple fixtures at point-of-use. The Model 310® contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. For higher capacity needs, the Model 310® is available with a 3/4″ NPT outlet. Model 310® precisely controls outlet temperatures to within ±3o with flow rates of .5 to 7 GPM or .5 to 12 GPM at 45 psi (based on your choice of outlet piping size). The Model 310® can be installed with or without cabinet.
ENG# 72049
SPECIFICATIONS
| Series | 310 |
|---|---|
| Model | 310-75 |
| Configuration | Standard |
| Engineering Number | 72049 |
| Application | Point of Use |
| Certification/s | ASME A112, ASSE 1016, CSA B125 |
| Connection Type | NPT |
| Inlet Connection Size | 3/4" |
| Outlet Connection Size | 3/4" |
| Min Flow | 1/2 GPM |
| Min Flow with Recirculation | N/A |
| Rated Flow at 10 PSI | 5-1/2 GPM |
| Rated Flow at 45 PSI | 12 GPM |
| Temperature Range | 100°F – 150°F, 50°F – 100°F, 85°F – 135°F |
| Finish | Polished Chrome, Rough Brass |
