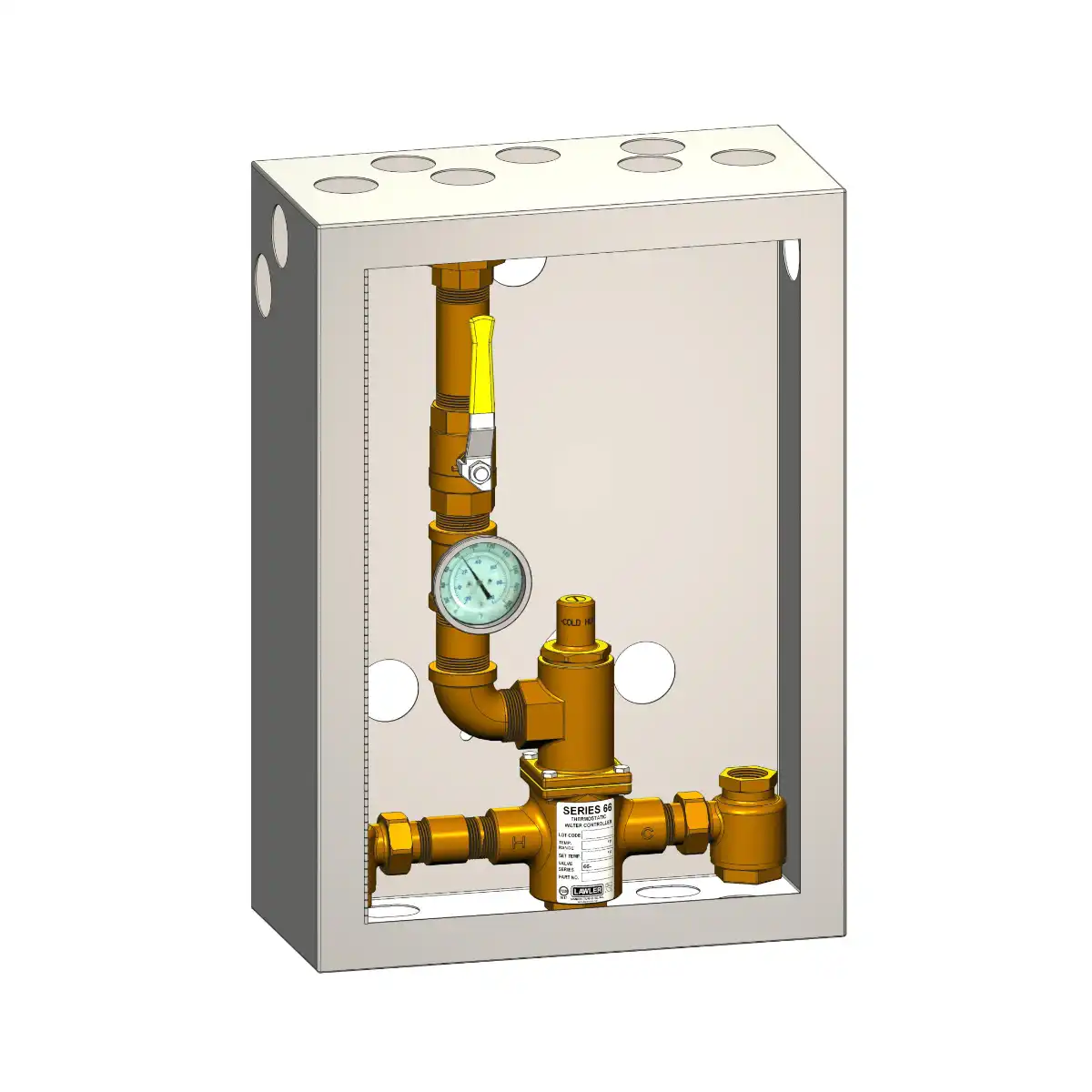

66200 Piped Thermometer Ball Valve Union Cabinet

66200 Piped Thermometer Ball Valve Union Cabinet

Lawler’s Model 66® meets your specifications for efficiently mixing large quantities of hot and cold water while delivering Three-Way Protection™ against runaway temperatures, thermal shock, or scalding should the thermostat, hot or cold water supply fail. The largest 66® valve can flow up to 200 GPM and accurately maintain outlet temperature within ±3°. Lawler Model 66®, like every Lawler master controller, not only meets, but exceeds the ASSE 1017 standard.

ENG# 83006

Check out the 66200 Piped Thermometer Ball Valve Union Cabinet today!

SPECIFICATIONS

Series

66

Model

66200

Configuration

Piped Thermometer Ball Valve Union

Engineering Number

83006

Application

Master Controller

Certification/s

ASSE 1017, CSA B125.3

Connection Type

NPT

Inlet Connection Size

2"

Outlet Connection Size

2"

Min Flow

30 GPM

Min Flow with Recirculation

1/2 GPM

Rated Flow at 10 PSI

96 GPM

Rated Flow at 45 PSI

200 GPM

Temperature Range

100°F – 150°F, 50°F – 100°F, 85°F – 135°F

Finish

Chrome Plated, Electroless Nickel Plated, Polished Chrome, Rough Brass

Cabinet Mounting

Recessed

Cabinet Finish

Baked White Enamel, Stainless Steel

INSTALLATION & MAINTENANCE MANUAL DOWNLOADS

CategoryTitleLink
blue wrench icon
Install and Maintenance Manual66 Series – Standard – Installation and Maintenance Manual

PRODUCT DOWNLOADS

CategoryTitleLink
blue shapes
Spec Books83006 – 66200 Piped Thermometer Ball Valve Union Cabinet – Submital Datasheet
blue notebook icon
AIA Specifications83006 – 66200 Piped Thermometer Ball Valve Union Cabinet – TEXT – AIA Specification
